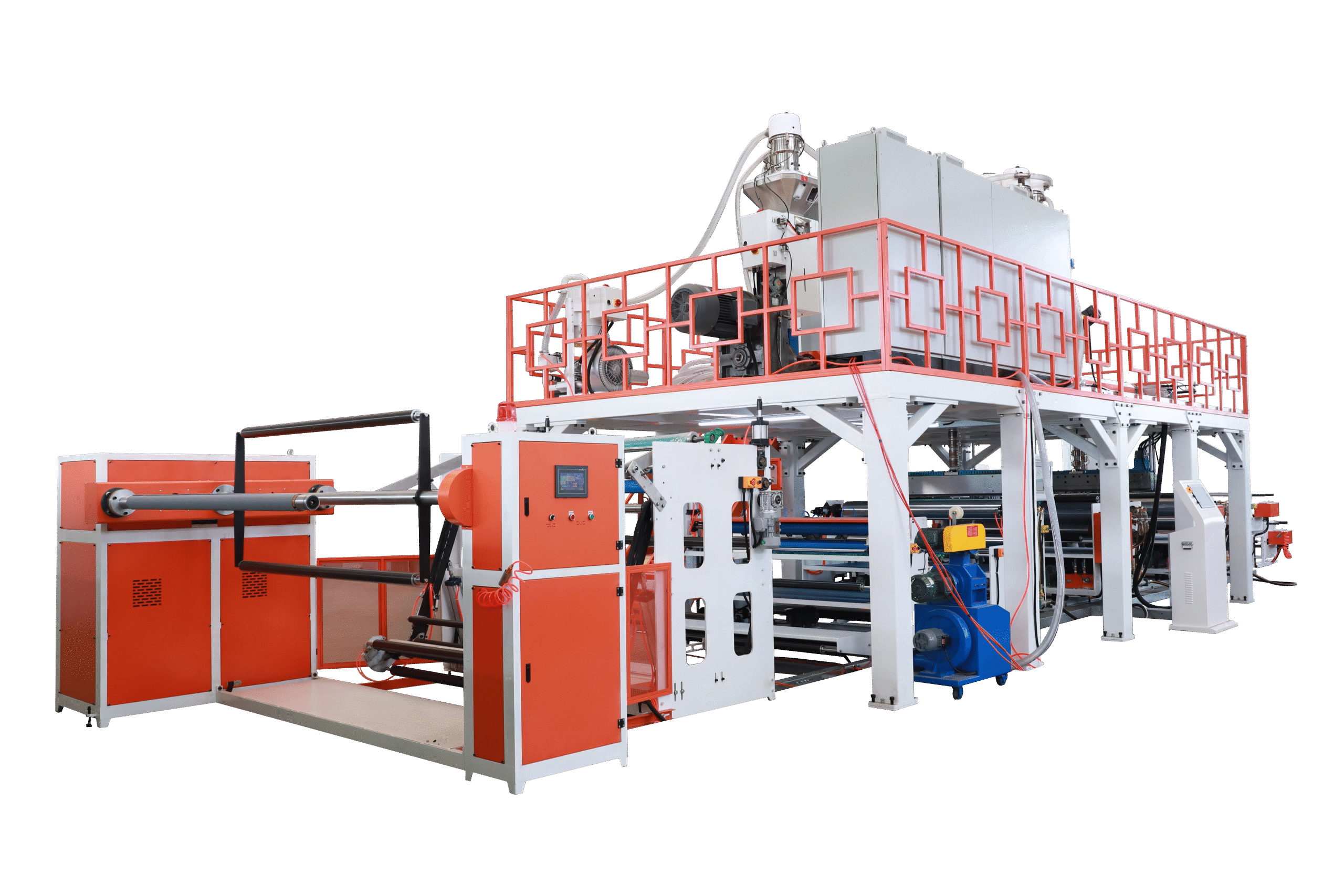

Four layers three screws laminated air bubble film machine
Product name: 4 layer threee screws air bubble film machine with laminating function
– Forming roller diameter: Φ310mm, round bubble size: Φ10X4mm(Bubble size customizable)
-Automatically water temperature control system
– Silicone roller and cooling roller
– Three Phase Automatic feeders
– Pneumatic roll dividers
– Anti-pinch safety net
Product description
Machine Parameter
| Model number | MF-125-L4 | MF-150-L4 | MF-200-L4 | MF-260-L4 | MF-300-L4 |
| Bubble film width (mm) | 1250 | 1500 | 2000 | 2600 | 3000 |
| Material used | LDPE/LLDPE/HDPE/PP | ||||
| Line speed(m/min) | 15-35 | 15-35 | 15-30 | 15-30 | 15-25 |
| Capacity (kg/hr) | 90-120 | 100-130 | 120-140 | 130-160 | 140-180 |
| Thickness(g/m2) | 25-500 | 25-500 | 25-500 | 28-500 | 35-500 |
| Main extruder Screw size | Ф75X34+Ф65X34 | Ф80X34+Ф75X34 | Ф85X34+Ф80X34 | Ф90X34+Ф85X34 | Ф120X34+Ф105X34 |
| Sub extruder Screw size | Ф65X34 | Ф75X34 | Ф80X34 | Ф85X34 | Ф105X34 |
| Installation power (kw) | 102 | 138 | 151 | 185 | 220 |
| Operation power(kw) | 55 | 72 | 80 | 72 | 115 |
Key advantages:
Our bubble film machines help manufacturers like you:
✅ Slash material costs by 20%+ (Only 10% LDPE needed!)
✅ Reduce power consumption with servo-driven system
✅ Produce 3% weight-error film (left-to-right) – harder feel, better protection
✅5-year screw lifespan – Self-made parts guarantee durability

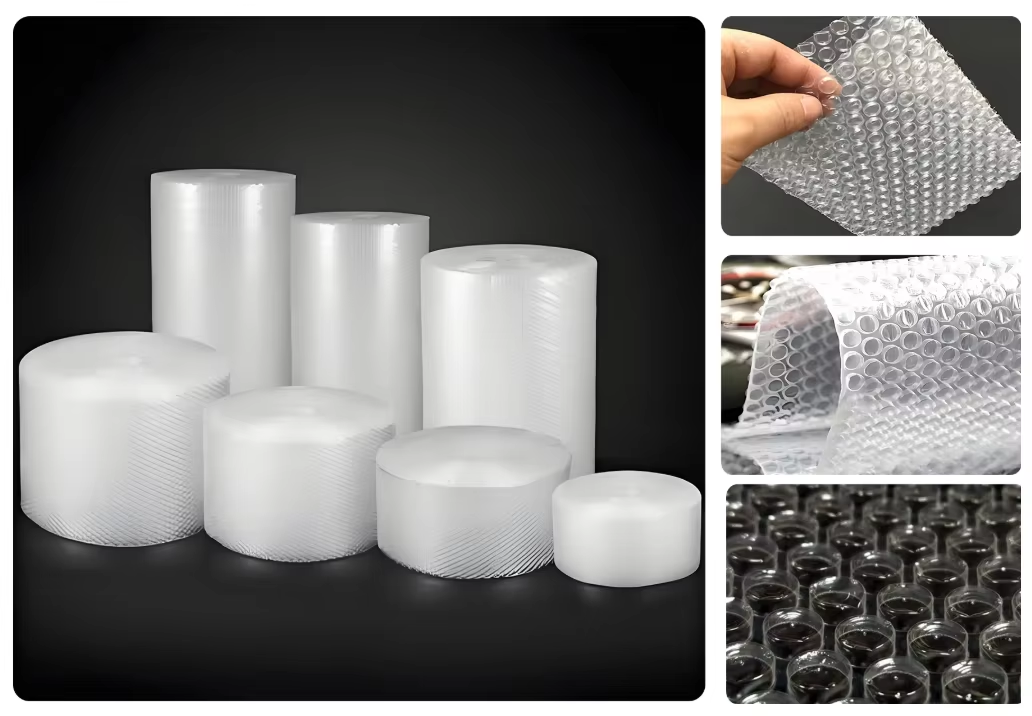

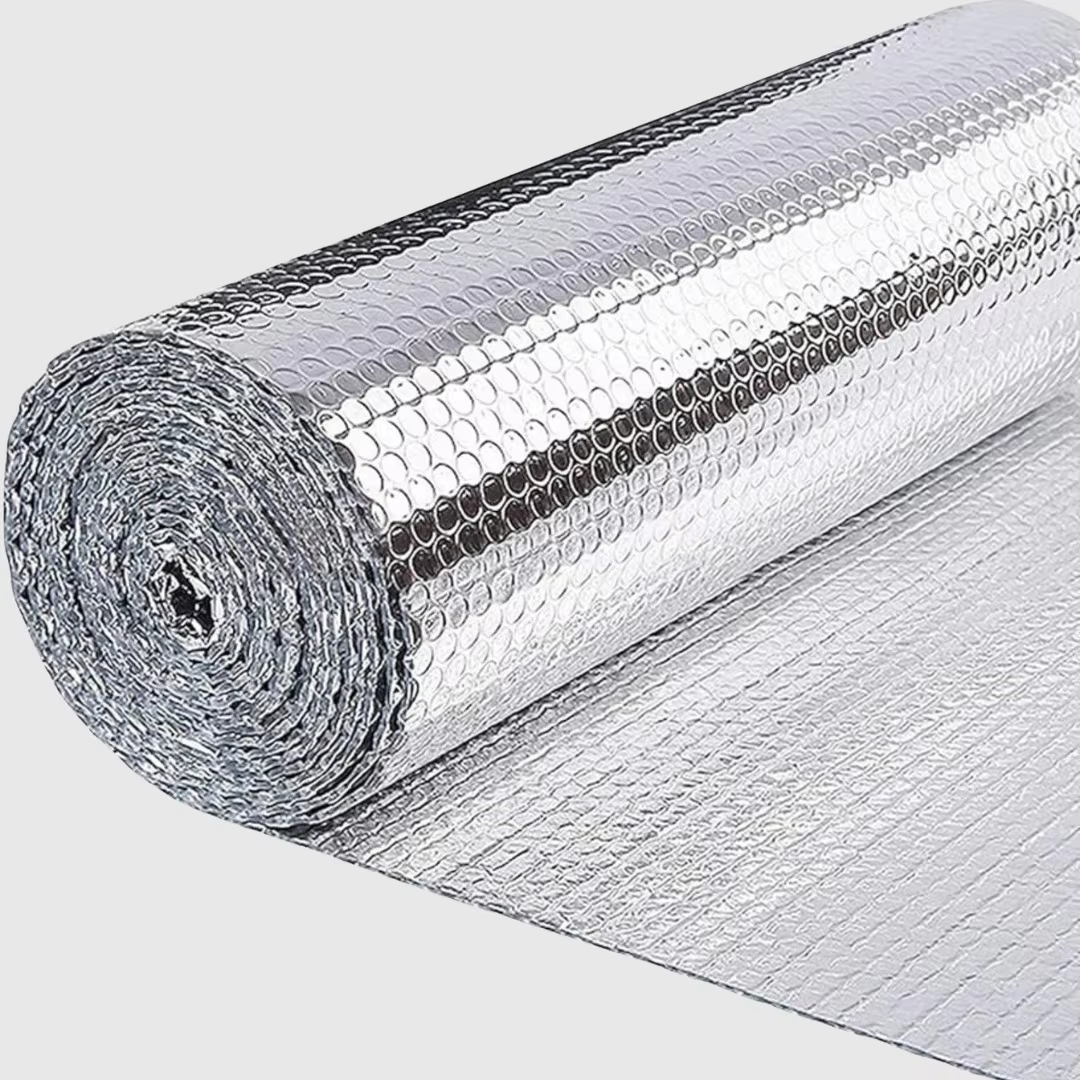

Product type:
Note: Bubble shape can be customize according to your need.
