MF 75S strip plastic granulator
Model: MF-75s plastic granulator
Screw Diameter: ∅75mm
Capacity:40~80 KG/hour
Maerial suited: LDPE/HDPE/CPE/PVC/TPU/degradable plastic
Production Area:5 m²
Product description
Machine Specification
| Model | Output(kg) | Avg. Power Consumption（Kwh/ton） | Total Power（Kw） | Machine Size（m/m2） | Machine Weight（kg） | Extruding Motor(KW) | Gearbox | Screw Dia. | Inverter | Cutting Motor | Blower |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MF90S | 70-110 | 200~250 | 25 | 7x1.3x1.9 | 1260 | 18.5 | 173 | 90 | 18.5 | 1.5 | 0.17x3 |
| MF75S | 40-80 | 200~250 | 20 | 7x1x2.7 | 1200 | 15 | 146 | 75 | 15 | 1.5 | 0.17x3 |
Machine Capacity
40~80 KG/hour
Machine Advantage
- Eco pelletizing, smoke less and odorless, air cooled
- Low-temp processing, keeping properties, reusable pellets
- Boot on demand, intuitive to use, small area occupation
- One time investment, reduce cost, no scraps wasted

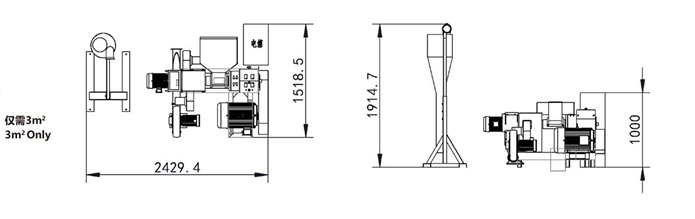

Floor Space:
Application
